The Register Setup screen enables setting the peripherals and printing options of the cash register. The screen is available for the store manager and administrator (configurable by user required Role).

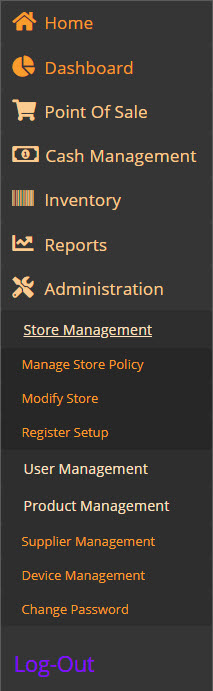

Entry point:

Navigation Menu > Administration > Store Management > Register Setup

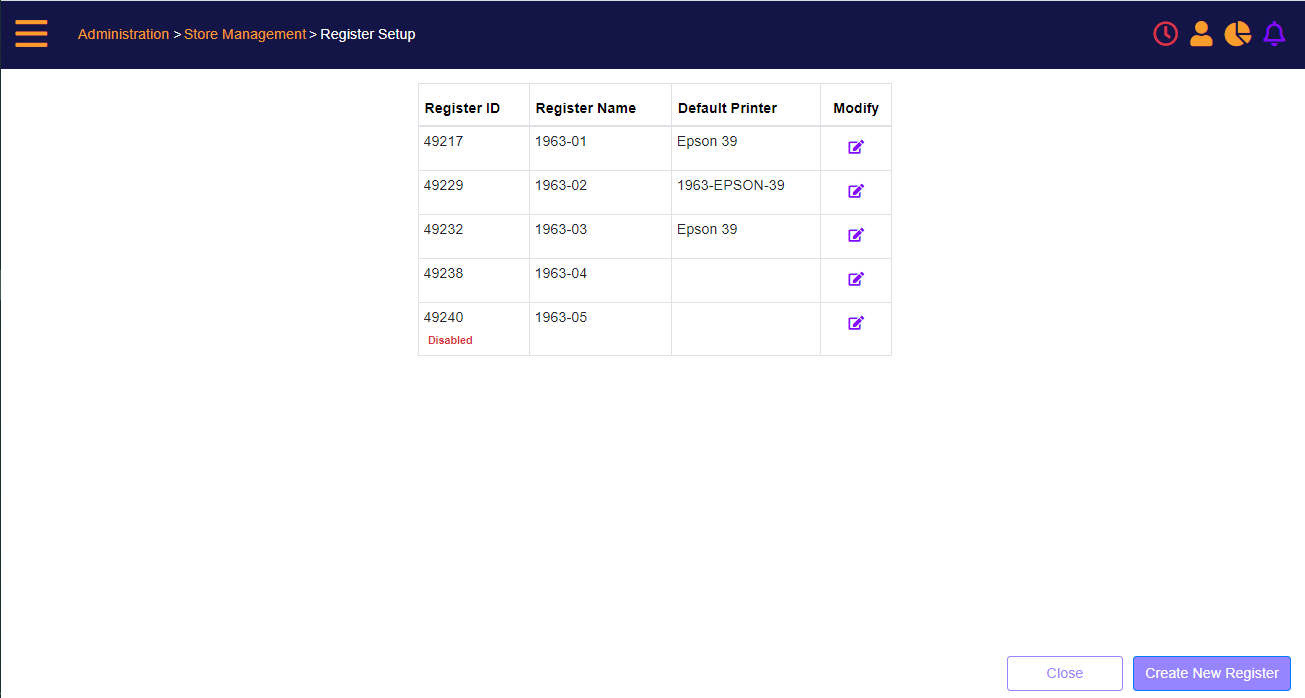

Register Setup landing page - Register list

Register Setup landing page - Register list


Screen Data Elements

Elements

Type

Action

Register ID

Numeric

Register ID

Register Name

Numeric

Register ID in MT-POS

Default Printer

Varchar

Default printer configured for the register

Modify

Icon

Select to modify the register settings

Close

Button

Close the Register Setup screen

Create new register

Button

Create a new register

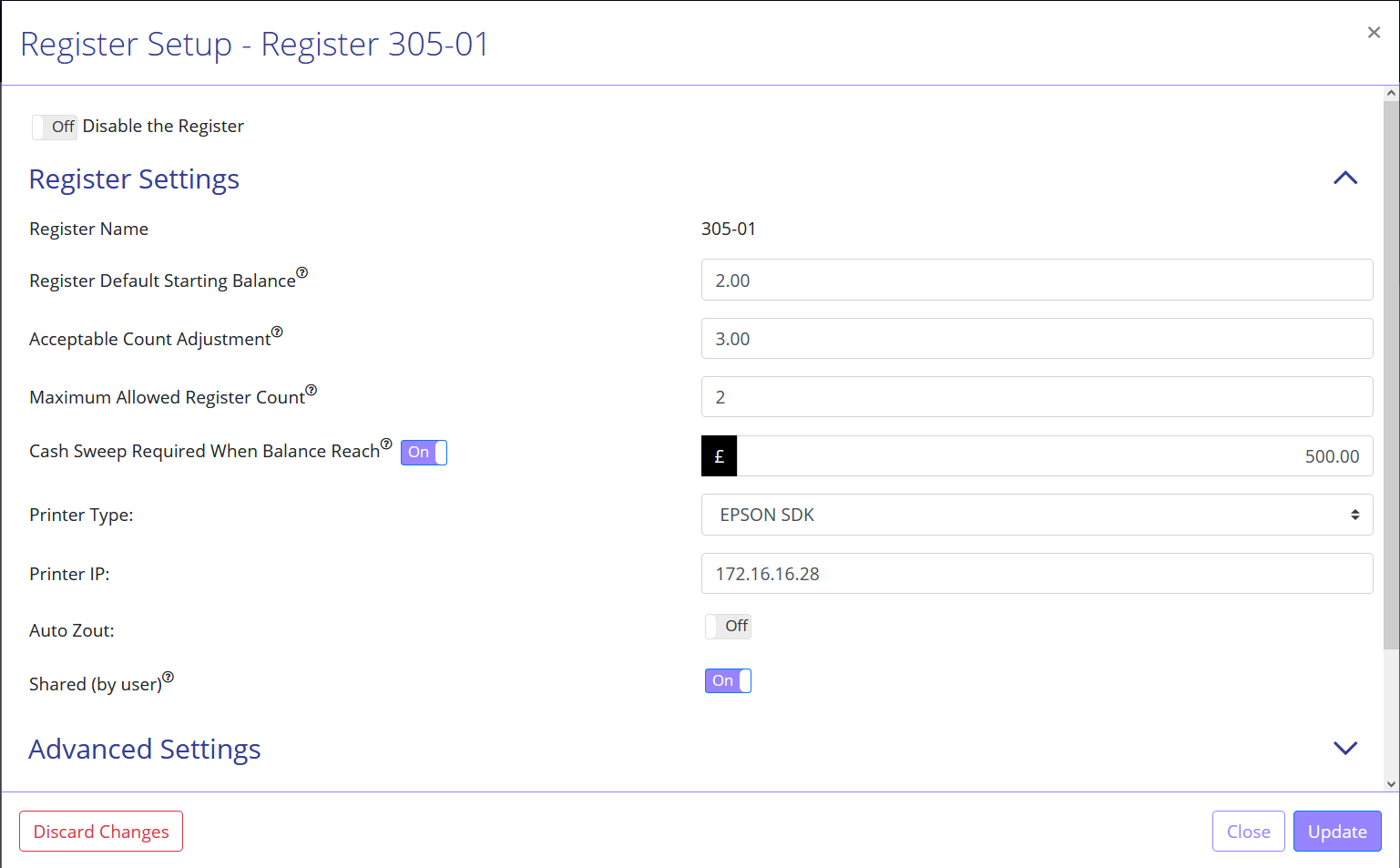

Register Setup Screen – Register Settings

Register Setup screen


Register Settings Section - Screen Data Elements

Elements

Type

Action

Disable the register

On/Off

Select Off to enable the register

Register Name

Numeric

Register ID in MT-POS

Register Default Starting Balance

Money

Define the default amount remaining in the register

Acceptable Count Adjustment

Money

Max cash amount discrepancy allowed

Maximum Allowed Register Count

Numeric

Number of incorrect counts allowed before system records an adjustment

Cash Sweep Required When Balance Reach

Money + On/Off

Select On to enable a mandatory cash sweep amount, and enter the amount

Printer Type

Select from list

Select the printer type

Printer IP

Box

Enter the printer’s IP address

Auto Zout

On/Off

Select On to enable auto Zout, and Off to disable an auto Zout.

Shared (By User)

On/Off

Select On to allow different workstations to use the register simultaneously

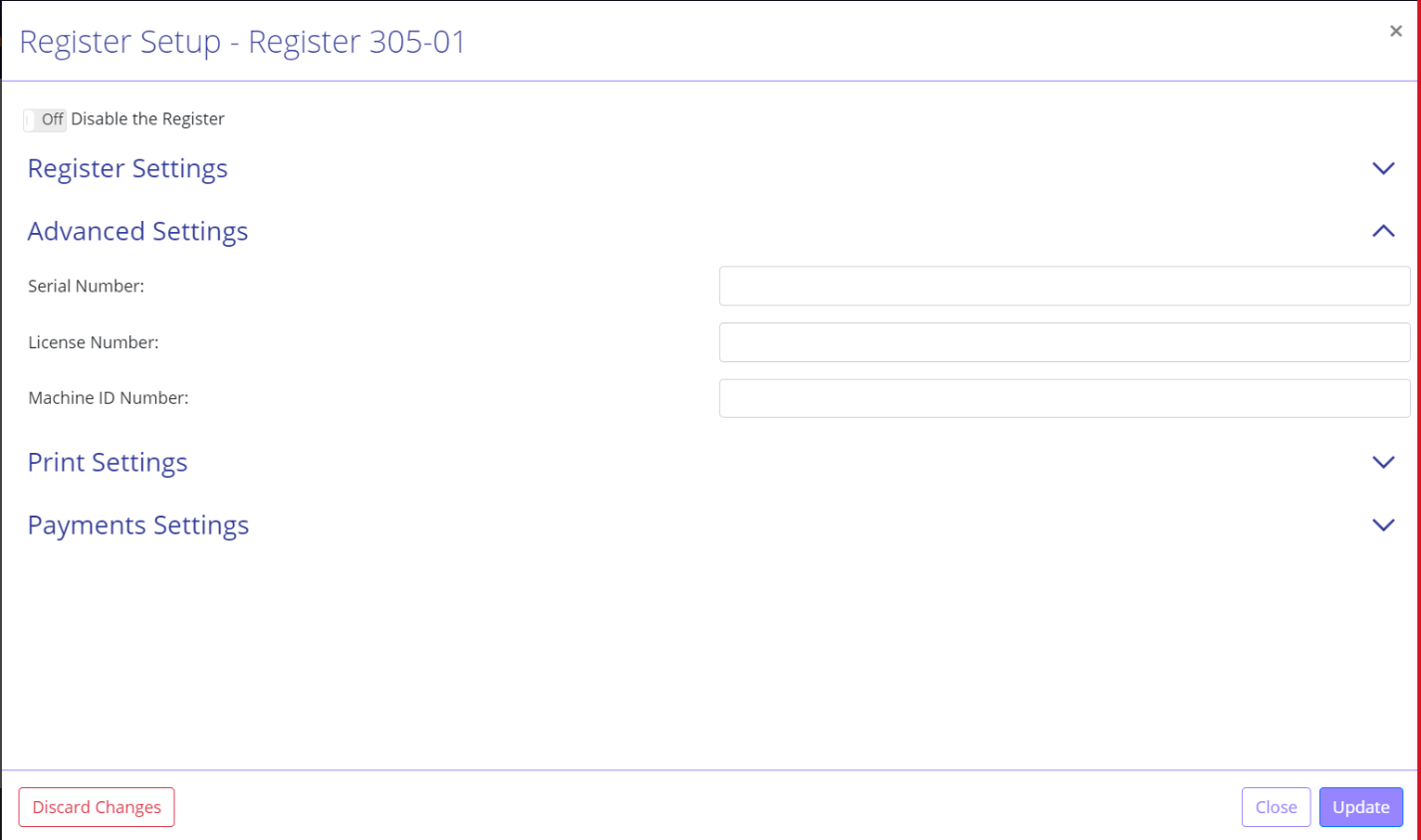

Register Setup screen – Advanced Settings

Register Setup screen - advanced settings


Advanced Setting Section - Screen Data Elements

Elements

Action

Serial Number

Enter the register’s serial number

License Number

Enter the register’s license number

Machine ID Number

Enter the machine ID number

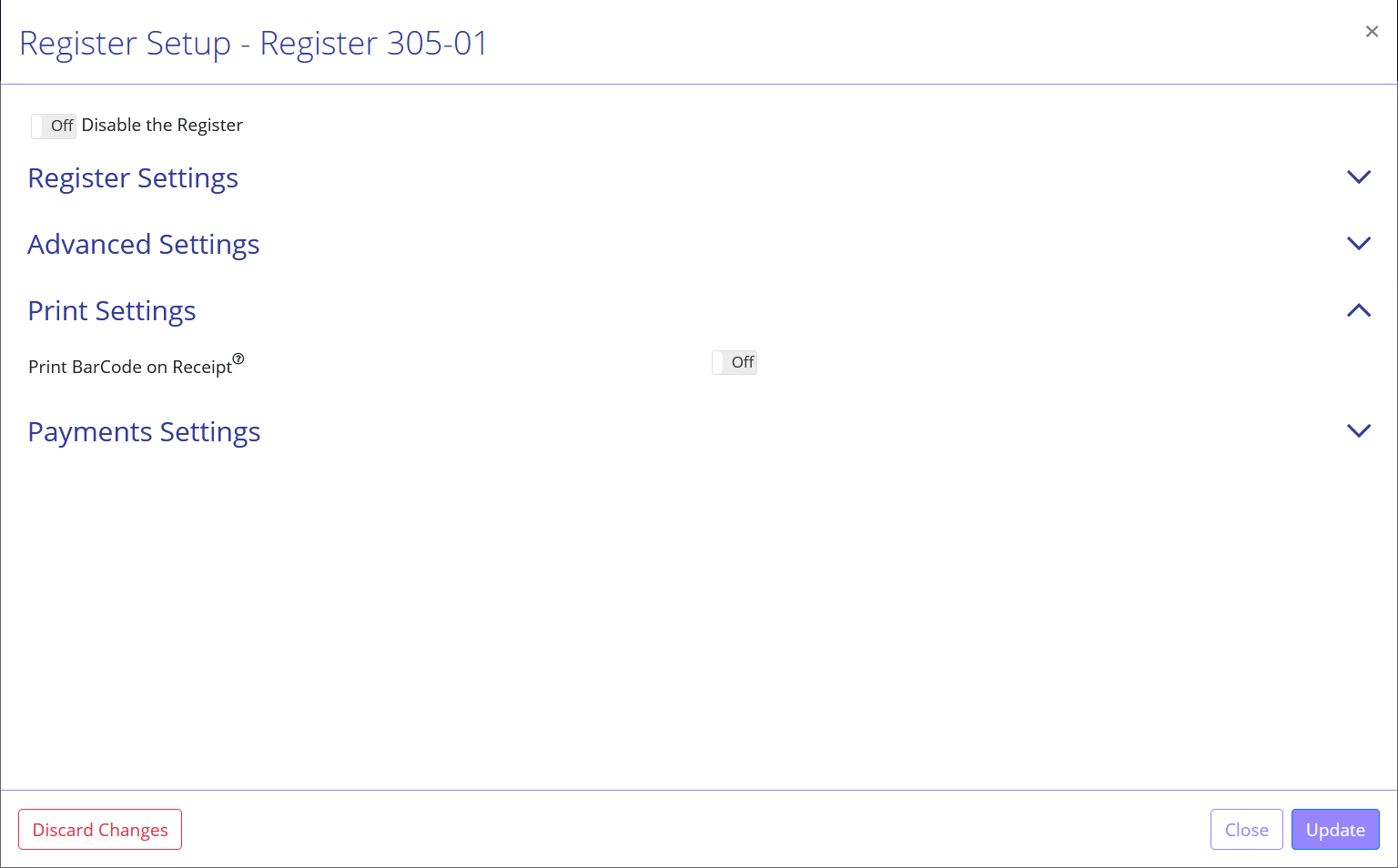

Register Setup Screen – Print Settings

Register Setup Screen – Print Settings


Print Settings Section Screen Data Elements

Elements

Type

Action

Print Bar-code on Receipt

On/Off

The order’s barcode will be printed at the bottom of the receipt

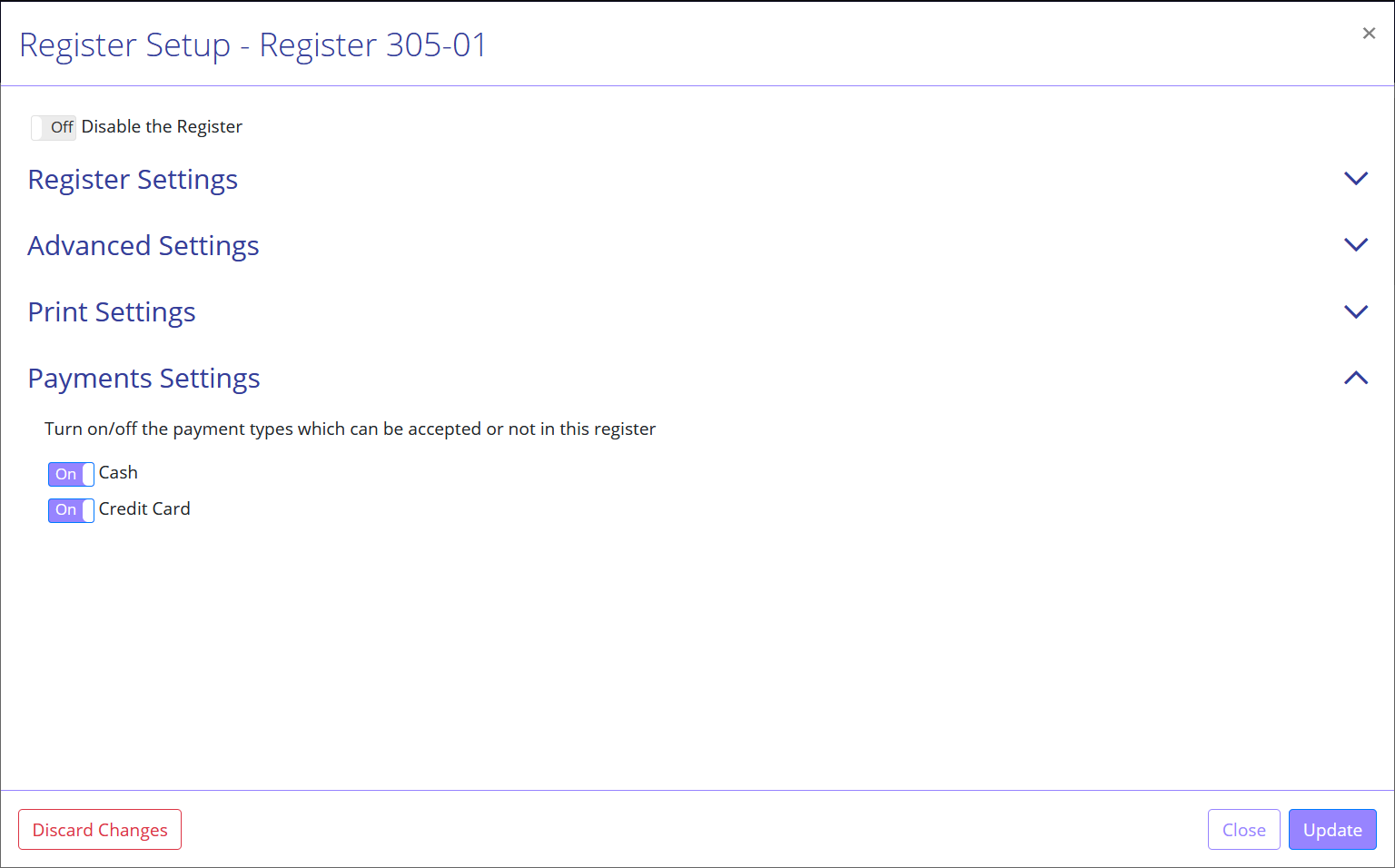

Register Setup Screen – Payment Settings

Register Setup Screen – payment Settings


Payment Settings Section - Screen Data Elements

Elements

Type

Action

Cash

On/Off

The cash payment option will be available

Credit Card

On/Off

The credit card option will be available

Discard Changes

Button

Discard the register setup changes

Close

Button

Close the register setup without saving

Update

Button

Save changes to register setup
